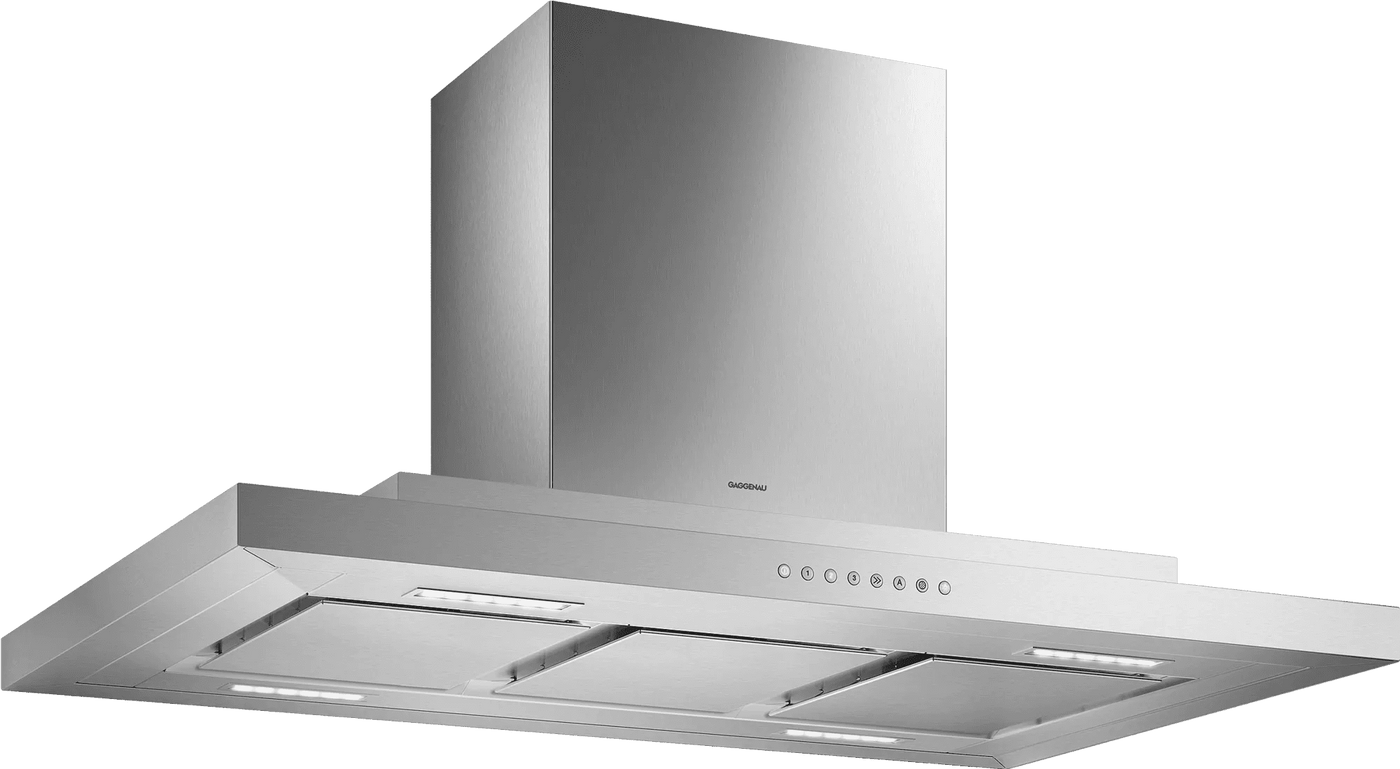

Gaggenau Range Hood-AI230700

Sku: AI230700
 Contact Us to Purchase







Payment Options:

  • visa
  • american express
  • master
Maximum quantity available reached.

Product Description
Output

  • Odor reduction recirculation: 95%.
Features
  • 3 electronically controlled power levels and 1 intensive mode.
  • Grease filter saturation indicator.
  • Patented rim extraction filter, dishwasher-safe.
  • Airflow-optimised interior for efficient air circulation.
  • The package includes an one-way flap.
Planning notes
  • The package includes the two-part chimney with the dimensions from 2' 1 3/4" (654 mm) to 2' 8 13/16" (834 mm). Individual planning solutions can be implemented using the special accessory chimney extension AD 200 322 or by shortening the lower edge of the inner chimney.
  • Clearance above gas appliances min. 76 cm (more than total load gas 12 kW min. 70 cm).
  • Clearance above electric appliances min. 28".
  • The air recirculation module with activated charcoal filter can be installed on the inner chimney.
  • When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Rating
  • Total Amps: 3 A.
  • 110 - 127 V / 60 Hz.
  • Classic Gaggenau design
  • Highly efficient extraction of cooking vapours
  • Low-noise fan
  • Patented filter technology with high grease absorption
  • Rim extraction filter with flat and easy-to-clean stainless steel underside

Dimensions
Width: 39.5" (100.3 cm) Height: 36.5" (92.7 cm)
