Product Description

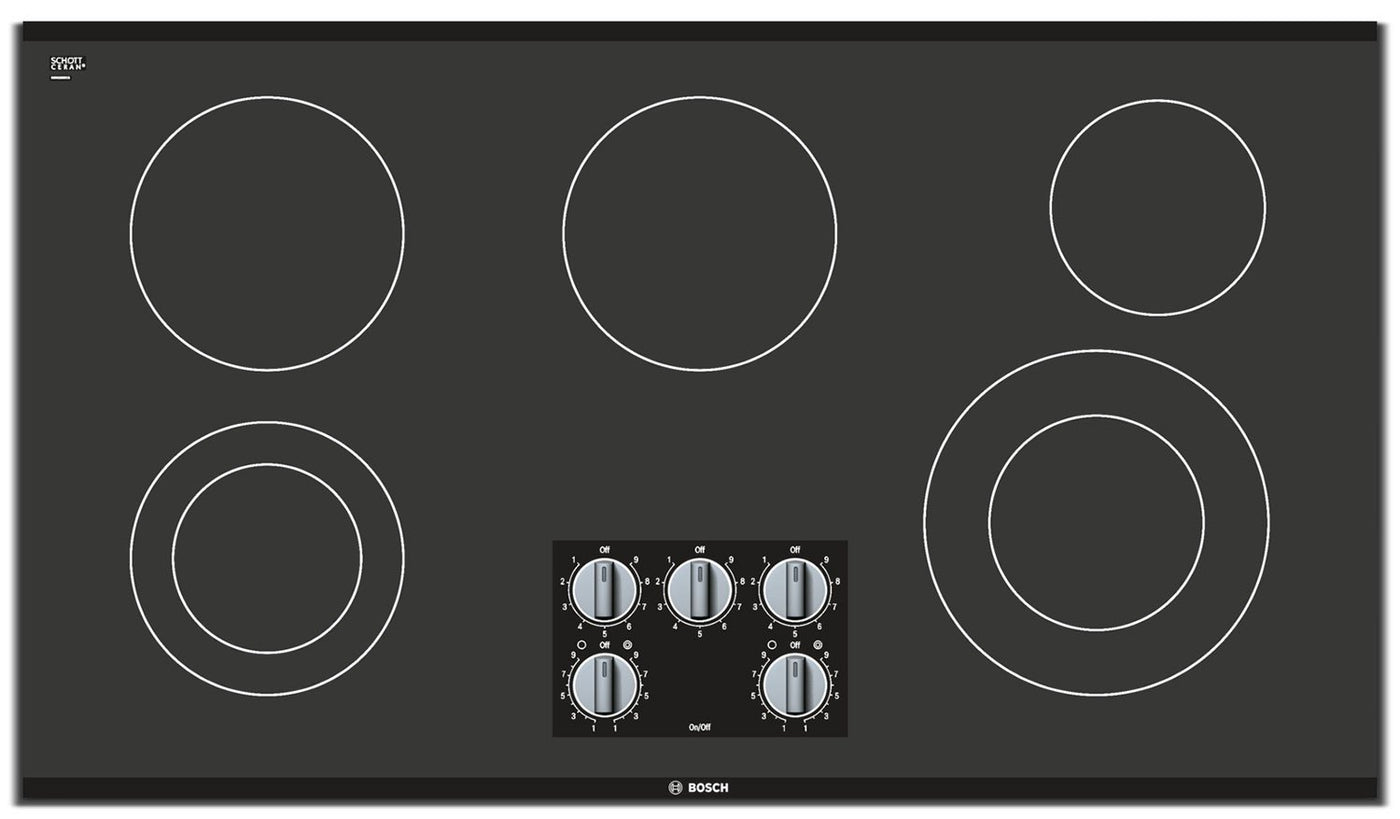

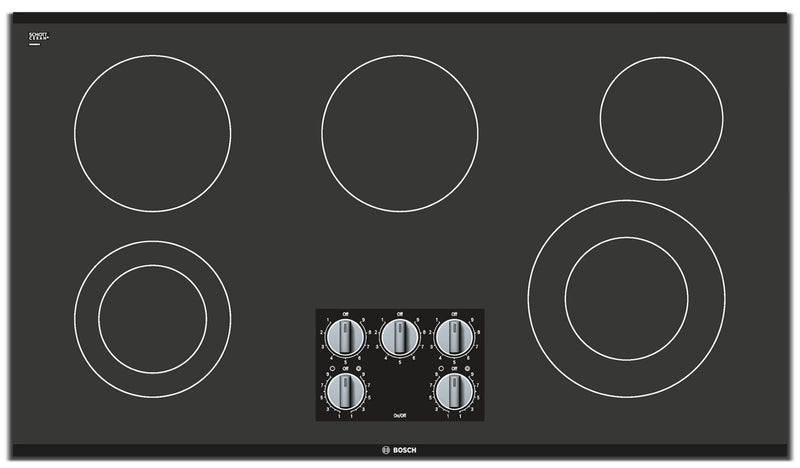

Feel like a pro when you use this Bosch 500 series electric cooktop. With five burners, you can cook everything you need at once without waiting for space on the cooktop. Two dual burners allow you to customize the size of the elements to a small pan or a large pot, while the powerful 2,500-watt burner boils water in a flash. Created with a seamless design, this sleek cooktop enhances the modern look of your kitchen.
Dimensions
Width: 21.25" (54.0 cm) Height: 4.25" (10.8 cm) Depth: 37" (94.0 cm)
Shipping Dimensions
Width: 7.88" (20.0 cm) Height: 24" (61.0 cm) Depth: 43.31" (110.0 cm)
Weight
39.00 lbs (17.7 kg)
Key Features:
- Two Dual Elements
- Powerful 2,500-Watt Burner
- Two-Level Heat Indicator
- Seamless Design
Two Dual Elements
Customized to the size of your cookware, the dual elements help you save energy with a focused area for a small pot or pan, and an enlarged area for a bigger pot or pan.
Powerful 2,500-Watt Burner
Boil water quickly with the powerful, front-right 2,500-watt burner.
Two-Level Heat Indicator
Whether the cooktop is hot or just simply warm, the heat indicator notifies you to prevent harmful burns.
Seamless Design
Enjoy a sleek and modern look in your kitchen with the cooktop's seamless design.
Full Features and Specifications
General Properties:
- Knob Material: Plastic
Burner/Element Performance:
- Total Number of Cooktop Burners: 5
- Location of First Heating Element: Front Left
- Power of First Heating Element: 0.7 kW, 1.7 kW
- Dimension of First Heating Element: 5", 7"
- Location of Second Heating Element: Back Left
- Power of Second Heating Element: 1.8 kW
- Dimension of Second Heating Element: 7"
- Location of Third Heating Element: Middle Back
- Power of Third Heating Element: 1.8 kW
- Dimension of Third Heating Element:76"
- Location of Fourth Heating Element: Back Right
- Power of Fourth Heating Element: 1.2 kW
- Dimension of Fourth Heating Element: 6"
- Location of Fifth Heating Element: Front Right
- Power of Fifth Heating Element: 1.1 kW, 2.5 kW
- Dimension of Fifth Heating Element: 6", 9"
- Sealed Burners: No
Certifications:
- Approval Certifications: CSA
Installation Requirements:
- Watts: 7,200
- Current: 30/30 A
- Volts: 240/208
- Frequency: 60 Hz
- Plug Type: No Plug
- Energy Source: Electric
Additional Dimensions:
- Required Cut-Out Size: 28.88" W x 4" H x 20" D
- Minimum Distance from Counter Front: 2.25"
- Minimum Distance from Rear Wall: 2"
